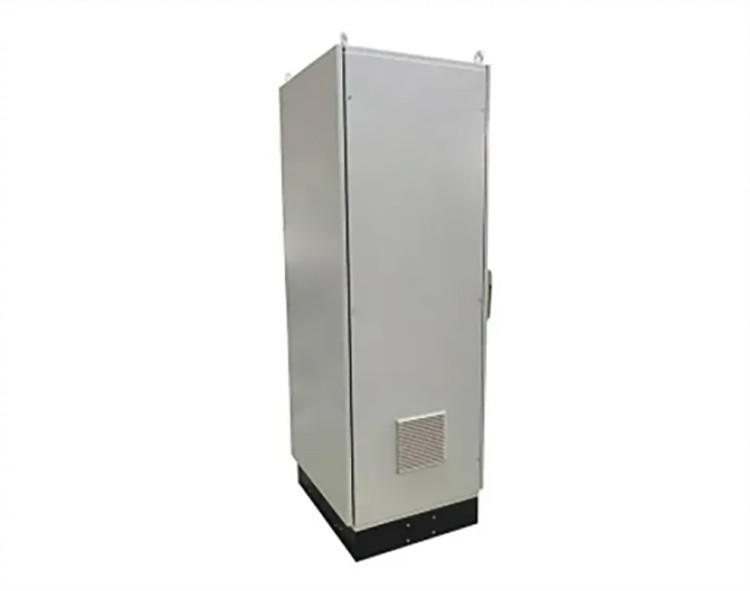

The core design difference between the two lies in spatial layout and functional zoning. Single door switchgear adopts an integrated door design, with the door completely covering the front of the cabinet. Internal electrical components are mainly arranged vertically, resulting in significant space utilization advantages. Its operation panel integrates instruments, control buttons, and other components, providing a clear view of the entire component layout when the door is open, making it suitable for small to medium capacity power distribution scenarios.

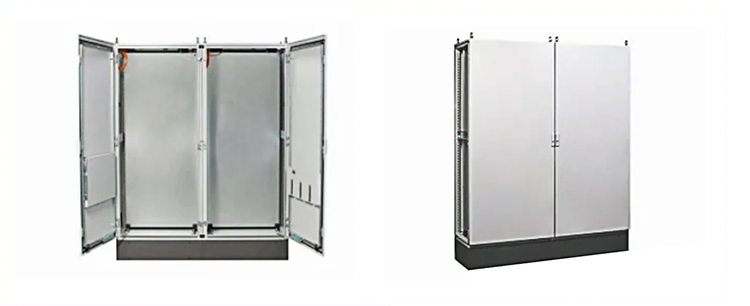

Double door switchgear adopts a zoned design, with the left and right doors opening and closing independently. A typical layout has the main circuit breaker operating panel on the left door and the terminal blocks and secondary circuits on the right door. This design allows for parallel operation and maintenance, avoiding efficiency losses caused by frequent tool movement. Compared to single-door structures, its cabinet depth design better meets the heat dissipation requirements of high-power components, and the horizontal component layout reduces stacking interference, improving heat dissipation efficiency by over 30%.
Selection should focus on three core dimensions: power distribution capacity, operation and maintenance scenarios, and space conditions. In terms of capacity matching, single door switchgear is suitable for branch circuit power distribution systems with a rated current of 630A and below, widely used in small motor control circuits in workshops and end-point power supply in office buildings. Double door switchgear is suitable for main power distribution circuits of 1000A and above, and is the mainstream choice for factory main power distribution rooms and power distribution on large production lines.
Based on the analysis of operation and maintenance needs, for power distribution points requiring frequent inspections, the centralized control layout of single door switchgear can improve operational efficiency. For scenarios involving periodic wiring checks and secondary circuit debugging, the partitioned design of a double door structure effectively isolates energized areas from maintenance areas.single-door wall-mounted cabinets are preferred for narrow power distribution rooms, while double-door floor-standing structures are recommended for spacious equipment rooms.
There is no absolute superiority or inferiority between single-door and double door switchgear; the selection essentially involves a precise match between scenario requirements and equipment performance. In practice, it is necessary to comprehensively consider the power distribution capacity level, installation space dimensions, and operation and maintenance habits to ensure that the door structure design fully fits the actual application scenario, thereby maximizing the role of the switchgear in ensuring stable operation in the power distribution system.
