Low Voltage Distribution Cabinets, also known as low-voltage switchgear, refer to electrical enclosures that integrate switching devices, protective devices, measuring instruments and wiring components. They are mainly used to receive high-voltage power (converted by transformers) and distribute it to various low-voltage electrical equipment, while realizing control, protection and monitoring of the power supply process. Its rated voltage is not more than 1000V AC or 1500V DC, which is the core terminal equipment of the low-voltage power distribution system.
1. Power distribution, which reasonably distributes the converted low-voltage power to lighting, motors, electrical appliances and other equipment in different areas;
2.Protection, which can quickly cut off the power supply when faults such as short circuit, overload and leakage occur, avoiding equipment damage and safety accidents
3.Monitoring, through built-in instruments, real-time display of voltage, current, power and other parameters, facilitating staff to grasp the operation status.

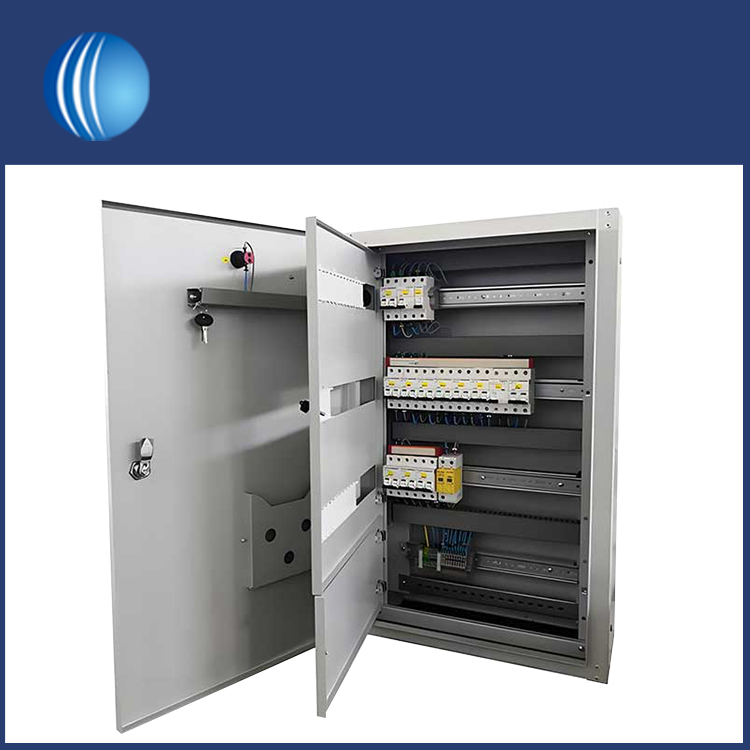

The internal components of Low Voltage Distribution Cabinets are standardized and modular, mainly including circuit breakers (used for overload and short-circuit protection), contactors (controlling the start and stop of electrical equipment), thermal relays (protecting motors from overload), terminal blocks (connecting wires), measuring instruments (voltmeter, ammeter, power meter) and wiring ducts (organizing wires), which work together to ensure the stable operation of the cabinet.
In industrial production, it powers equipment and controls the operation of production lines; in commercial buildings, it provides electricity for lighting, air conditioning, els, and other facilities; in communities, it distributes electricity to individual households; furthermore, it is widely used in public facilities such as hospitals and schools.
Low Voltage Distribution Cabinets need to meet strict performance requirements:
1. Electrical safety, with good insulation performance and short-circuit breaking capacity;
2.Structural stability, the cabinet body is made of cold-rolled steel or stainless steel, which is corrosion-resistant and impact-resistant;
3.Easy maintenance, the modular design is convenient for component replacement and line inspection;
4.Compliance with international standards to ensure that the product meets the requirements of electrical safety specifications.
In short, Low Voltage Distribution Cabinets are an indispensable part of the low-voltage power system, and their performance and quality are directly related to the safety and stability of power supply in various fields.
