As the Chinese agent of SKYT®, Shouke® has launched a new type of electrical control cabinet. The metal cabinet electrical enclosure has multiple mounting holes and guide rails inside to facilitate the installation of other components. The glass outer cabinet door allows for easy observation at any time.
Metal cabinet electrical enclosure consists of the following components: front left-hand door, long glass pressure strip, short glass pressure strip, left and right side panels, back panel, upper cover, bottom ring frame front and rear beams, bottom ring frame left and right beams, bottom plate fixing parts, bottom cover-F, installation plate, side crossbeam, baffle, door frame horizontal, door frame vertical left, door frame vertical right, and second floor door.
The left hand door in front of the metal cabinet electrical enclosure, the bottom plate fixing parts, the horizontal and vertical left and right door frames are made of Q235 carbon structural steel with a thickness of 2 millimeters. This steel has high strength, good plasticity and toughness, and good weldability. Capable of withstanding heavy equipment installation, while also having good impact and compression resistance, thus effectively protecting internal equipment.
The long and short glass pressure strips, left and right side panels, back panel, upper cover, front and rear beams of the bottom ring frame, left and right beams of the bottom ring frame, and the second floor door of the metal cabinet electrical enclosure are also made of Q235 carbon structural steel with a thickness of 1.5 millimeters; The installation plate is made of galvanized sheet with a thickness of 2.5 millimeters, and the side crossbeam is made of galvanized sheet with a thickness of 1.5 millimeters.

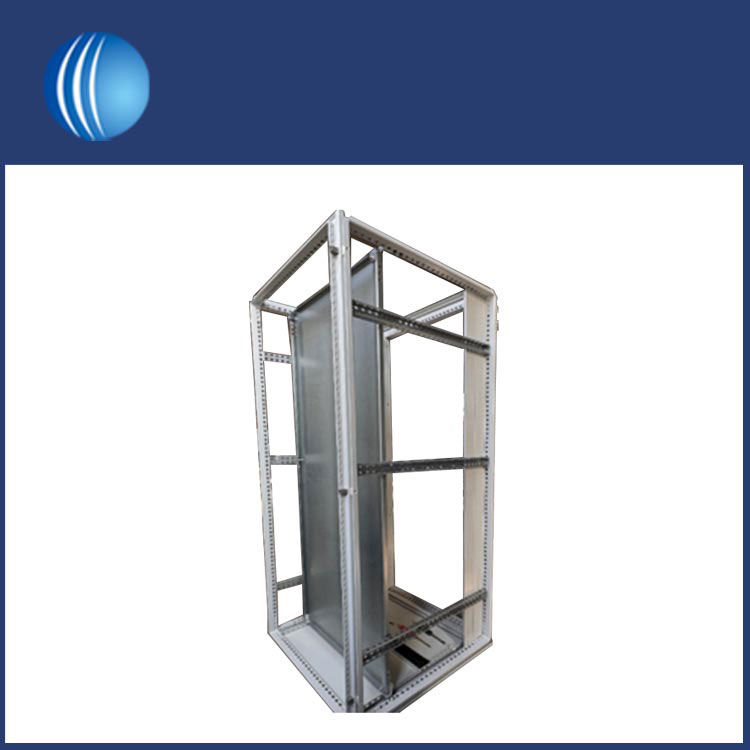

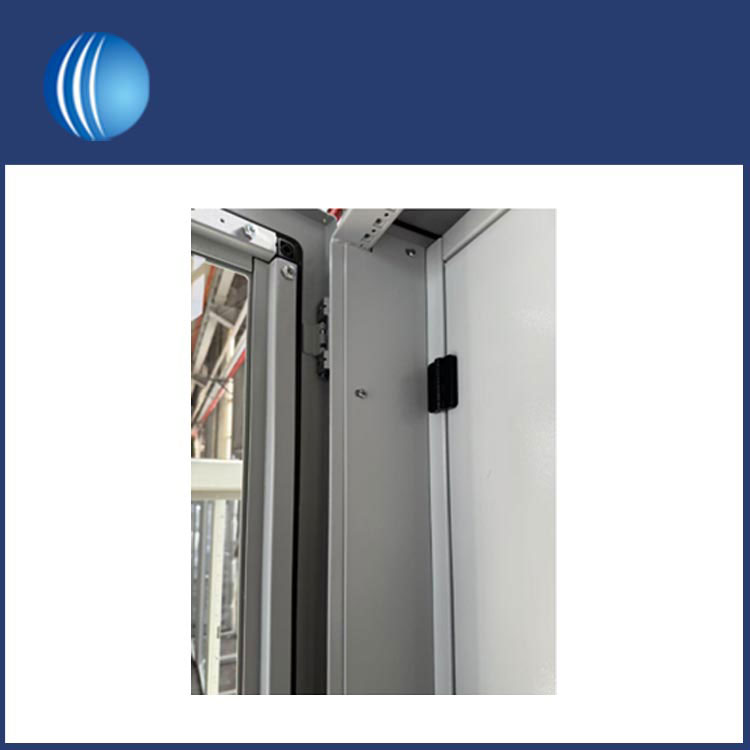

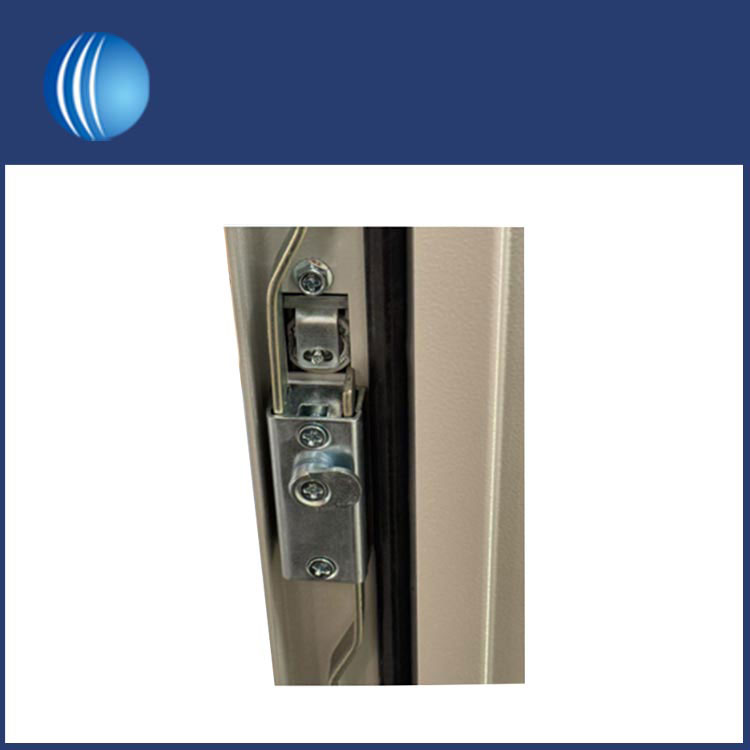

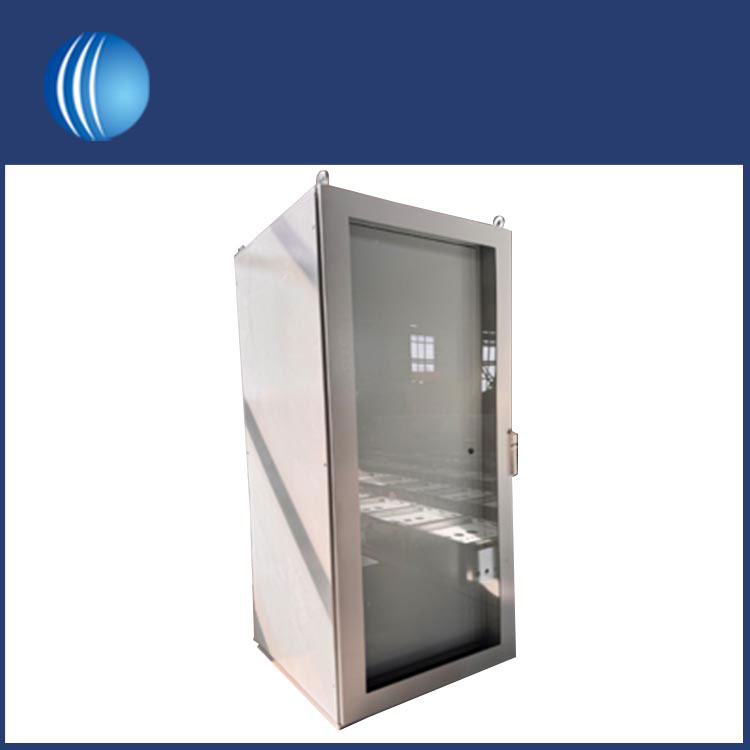

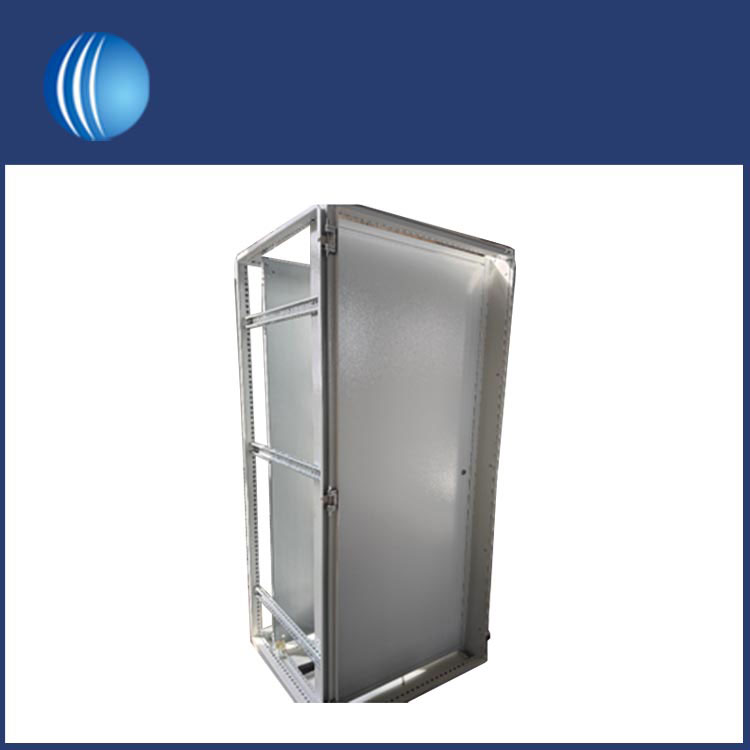

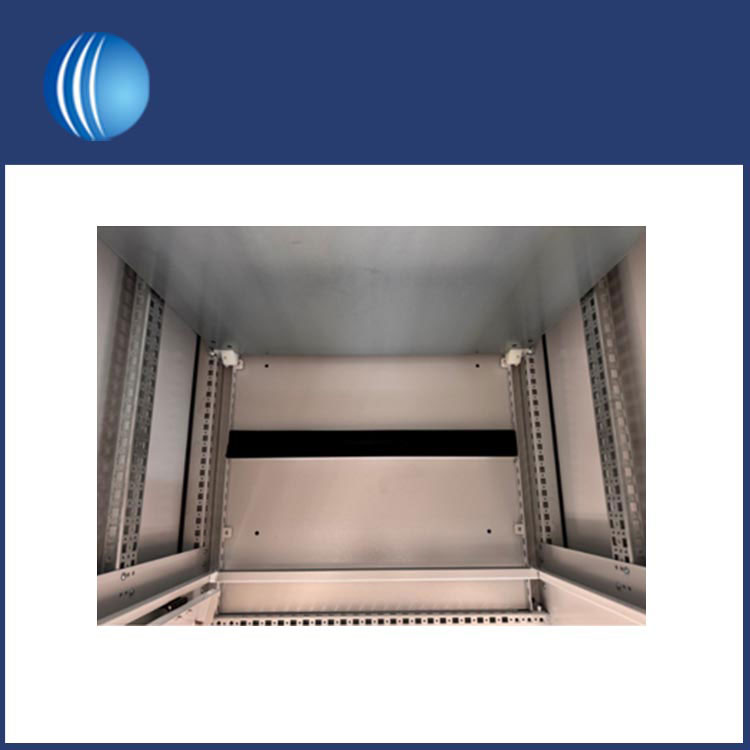

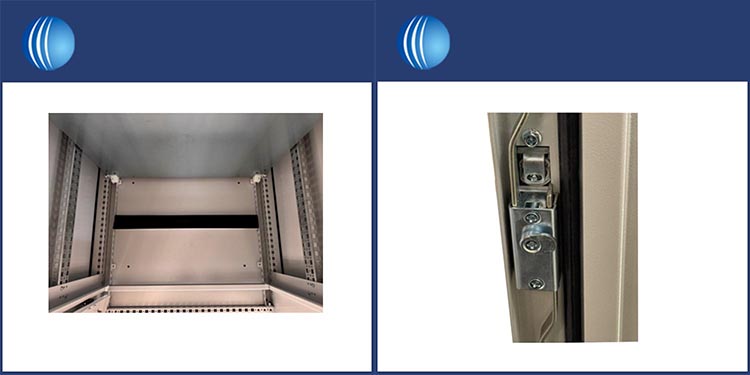

The entire metal cabinet electrical enclosure body has undergone surface treatment processes such as electrostatic spraying, which gives the cabinet body good corrosion resistance; Multiple installation holes and guide rails are designed inside the electrical enclosure to facilitate the installation of various equipment, servers, electrical control devices, etc; Reasonable spatial layout helps with device heat dissipation and cable management. The external cabinet door of the electrical enclosure is made of glass material, which facilitates observation of the operation of internal equipment. The second floor door is made of metal material, providing better protection. The cabinet door can be flexibly opened, making it easy to carry out maintenance work on internal equipment. The top of the metal cabinet electrical enclosure is equipped with lifting rings for easy lifting and handling. During installation, the cabinet can be easily placed in the designated location.
If you are interested in this metal cabinet electrical enclosure, please feel free to contact us at any time, or we can also provide non-standard customization according to your business needs.
