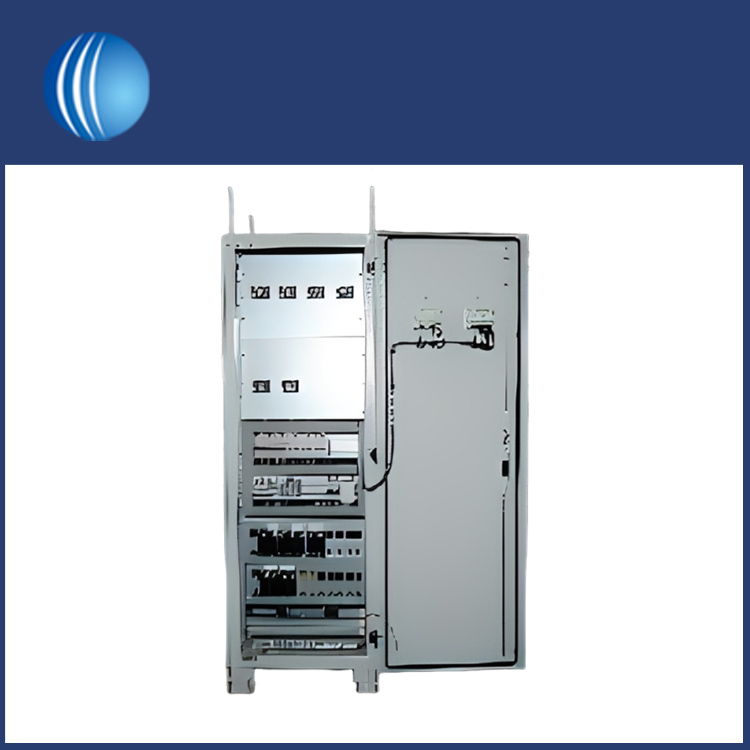

SKYT Industrial Isolation Transformer Cabinet is designed for industrial and medical applications requiring safe electrical isolation, stable voltage output and reduced interference. Integrated with a dry-type isolation transformer, the cabinet provides primary-secondary circuit separation for sensitive equipment such as medical devices, automation systems and precision testing instruments.
Our Industrial Isolation Transformer Cabinet adopts a heavy-duty industrial sheet-metal enclosure for long-term on-site deployment. Equipped with a double-winding dry-type isolation transformer inside, it features superior winding insulation, low temperature rise and excellent overload-resistance performance.

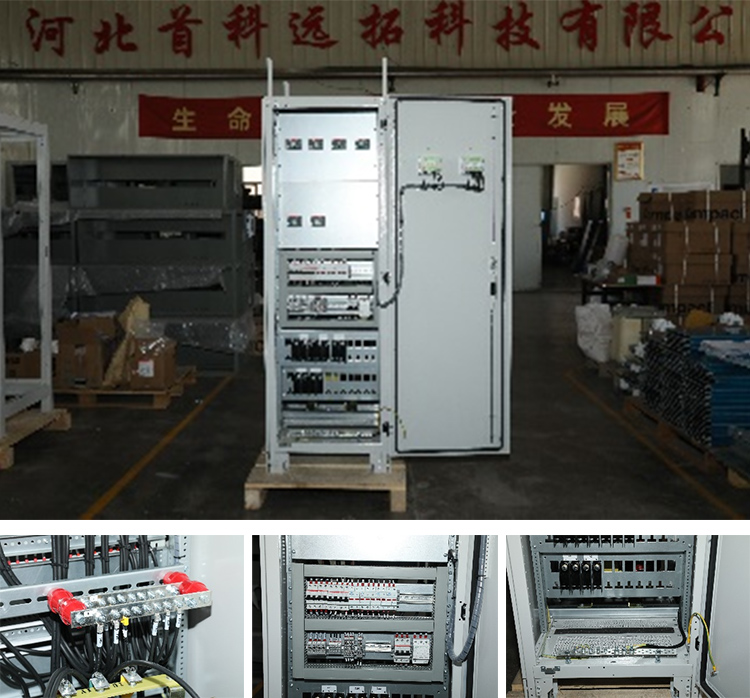

Inside the cabinet, functional zones are clearly partitioned. Insulated busbars and clearly-marked L/N terminals are pre-installed. Every cable is fitted with numbered marker tubes for neat wiring, quick identification and convenient later-stage maintenance. The unit is fully pre-wired and 100% factory-inspected before shipment. Customers can connect loads directly upon receipt. No extra component assembly is required, which greatly saves on-site installation costs and man-hours.
This power unit provides galvanic isolation and floating-ground power-supply protection. It blocks fault-current transfer, reduces electric-shock risks and suppresses grid harmonic interference, supplying ultra-clean power for sensitive high-value equipment.
Supported by a flexible modular cabinet framework, our engineering team can customize cabinets according to project requirements: adjust transformer capacity, add extra protection accessories, re-configure input/output voltage parameters and modify cabinet dimensions.
Core electrical components and transformers comply with CE and UL requirements, suitable for EU and global industrial projects.
The whole production process follows the ISO 9001 quality-management system. All sheet-metal processing, component assembly and finished-product testing are completed in-house.
Strict multi-step factory testing is conducted before delivery for each Industrial Isolation Transformer Cabinet, including transformer winding insulation resistance testing, withstand-voltage testing, full-load temperature-rise testing, cabinet wiring continuity checking and IP protection inspection. Every cabinet comes with a test report for traceability.
Raw-material incoming inspection mechanism: transformers, copper busbars and circuit breakers are inspected batch-by-batch to reject non-conforming parts.
| Item | Specification |
| Product Type | Industrial Isolation Transformer Cabinet |
| Transformer Type | Dry-type Isolation Transformer |
| Rated Capacity | Customized |
| Input Voltage | 220V / 380V / Customized |
| Output Voltage | Customized |
| Frequency | 50Hz / 60Hz |
| Insulation Class | Customized |
| Protection Grade | IP20 / IP54 / IP65 |
| Installation | Indoor / Outdoor |
| Cooling Method | Natural Air Cooling |
| Cabinet Material | Steel Sheet / Stainless Steel Optional |
| Application | Medical, Industrial Automation, Laboratory Equipment |

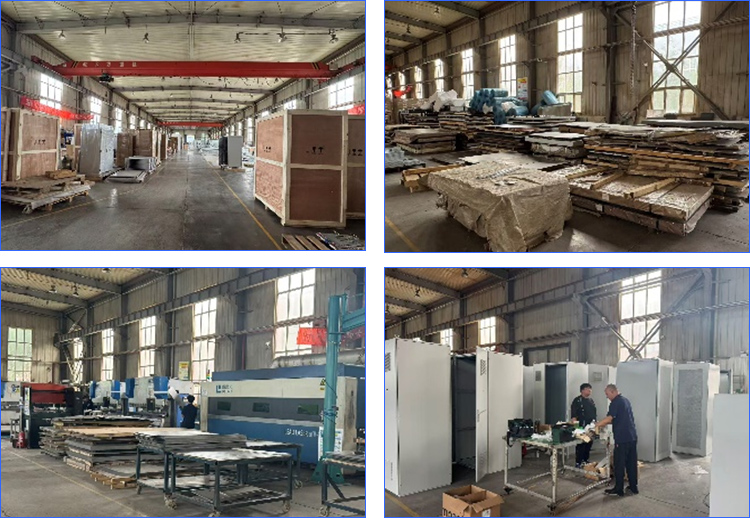

1. Integrated manufacturer & exporter: We own two standardized production workshops. Sheet-metal fabrication, transformer matching, component assembly and finished-product inspection are all completed inside our factory. No intermediate traders, stable cost control and lead time.
2. Strong custom capability: Our electrical engineering team has rich experience in industrial power-distribution projects. We can convert your technical specifications into feasible cabinet solutions, whether for standard or special project demands.
3. Strict traceable quality control: Each finished cabinet has a unique production batch number. Test reports and material certificates can be provided upon request for project acceptance.
4. Rich export experience: Familiar with overseas project standards and documentation requirements, we support CIQ, commercial invoice, packing list and test-report documents for customs clearance.
5. Flexible order support: We support both small-batch trial orders and large-volume project orders with stable production cycles for mass orders.
1. Pre-sales support: Provide technical parameter confirmation, cabinet dimension suggestions, schematic diagram review and quotations within 24 working hours.
2. During production: Send production progress photos/videos on request and provide sample-testing photos before shipment.
3. After-sales technical support: Provide remote guidance for installation, commissioning and troubleshooting via email/video call. Technical documentation including wiring diagrams and operation manuals will be supplied together with the goods.
4. Project-oriented service: For large-volume project orders, we support technical document adaptation to match local engineering acceptance requirements.
If you are sourcing Industrial Isolation Transformer Cabinets or custom industrial distribution enclosures, send us an inquiry today and get your competitive quotation.
