Electrical enclosure cabinets are used to protect internal electrical components and wires. They are available in a variety of sizes and structures, and different protection levels can be selected according to needs, such as IP54, IP65, etc.Shouke®(SKYT) is a Chinese industrial grade electrical cabinets manufacturer and supplier.Most of the products are made of stainless steel and cold-rolled steel plate.
Most of the electrical enclosure cabinets produced by Shouke® are made of stainless steel and cold-rolled steel plates, which are durable and corrosion-resistant. Cold-rolled steel plates are softer than hot-rolled steel plates and are more suitable for electrical cabinets. We have electrical cabinets with different protection levels, which can be customized according to different needs.

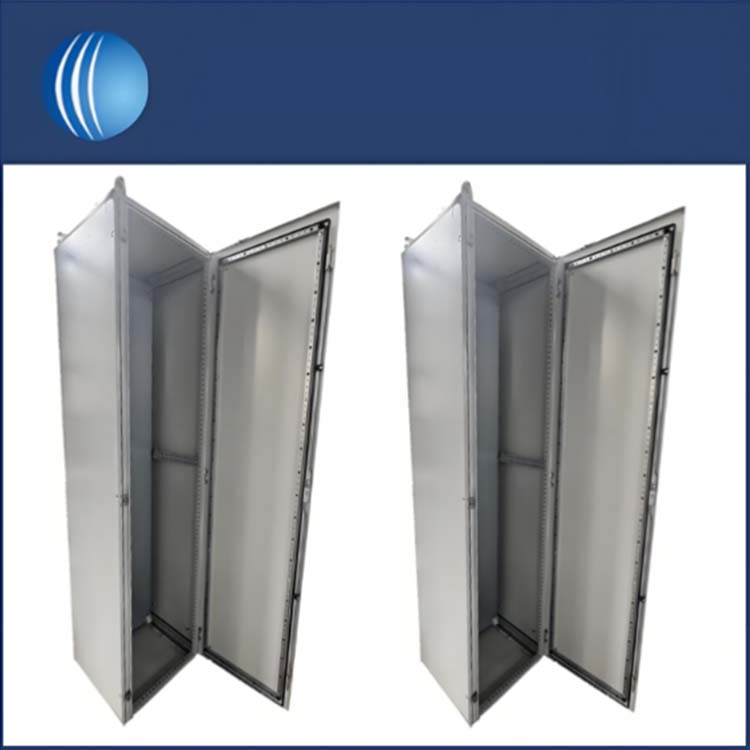

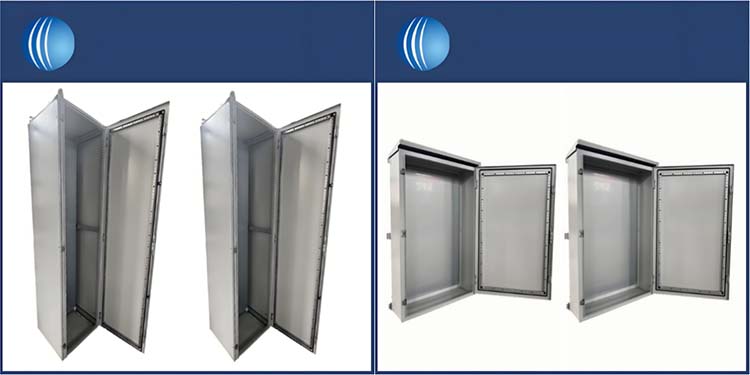

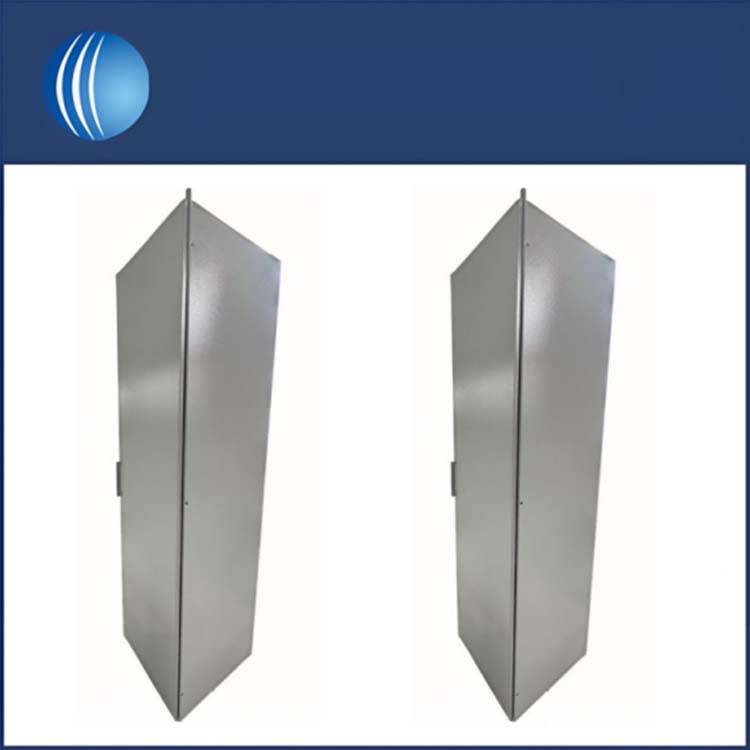

Here we are going to introduce you some new products of electrical cabinets and boxes which are going to be exported to Nicaragua, customer also ordered some components parts.
Accroding to the customer’s requirments,these electrical enclosure cabinets some made of cold rolled steel panels while some are made of Stainless Steel.These two different materials has its own adavantages and strong points.comparing with stainless steel, the cold rolled steel panel is more stronger, it has low cost, high strength and hardness.But the stainless steel has excellent corrosion resistance and good high-temperature oxidation resistance.
In order to make the cabinet more beautiful and improve its corrosion resistance, the surface has been treated with powder coating.

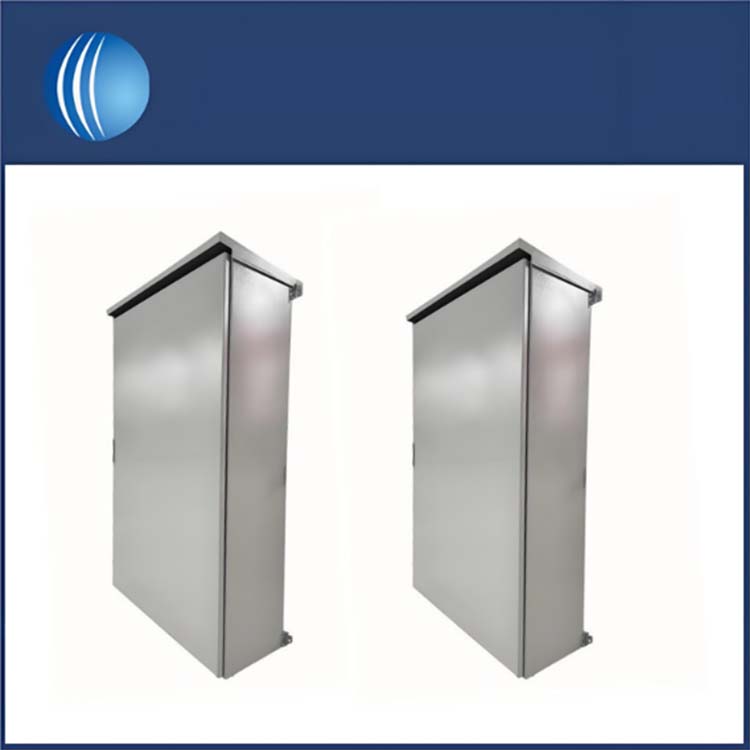

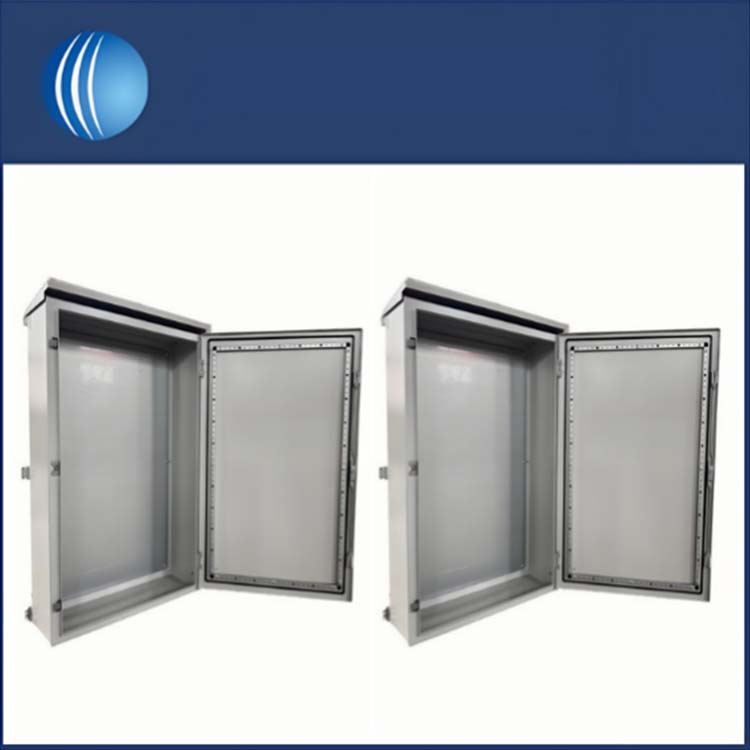

The thickness of the door and the body of the electrical enclosure cabinets is 1.5mm; Installation plate thickness is 2.0mm;spray color RAL7035 ,Front single door,No flower galvanized installation plate 1 piece and some boxes are installed a rain cover on the top.
The rear door can be single-door, double-door or back panel, which can be customized according to customer needs.

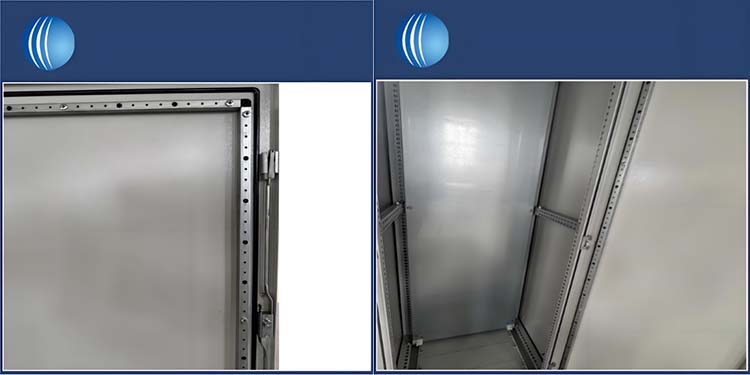

The frame is densely distributed with modulus holes with a spacing of 25mm, which is easy to install and expand. The mounting plate can be moved back and forth to adjust the depth, which is easy to adapt to different equipment.
The galvanized mounting plate can be pushed into the cabinet from the front through the guide rail using a plastic slide, and there are U-shaped flanges on both sides to make the mounting plate stronger and easier to handle
If you are interested in our industrial enclosure services, please feel free to consult us at your convienience, Our Sales Reps will reply to you ASAP!
