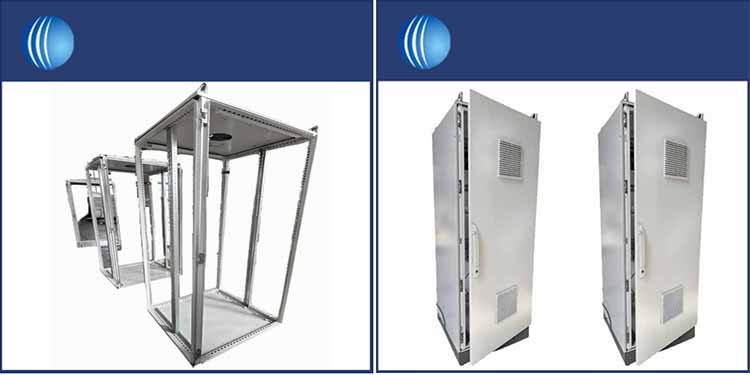

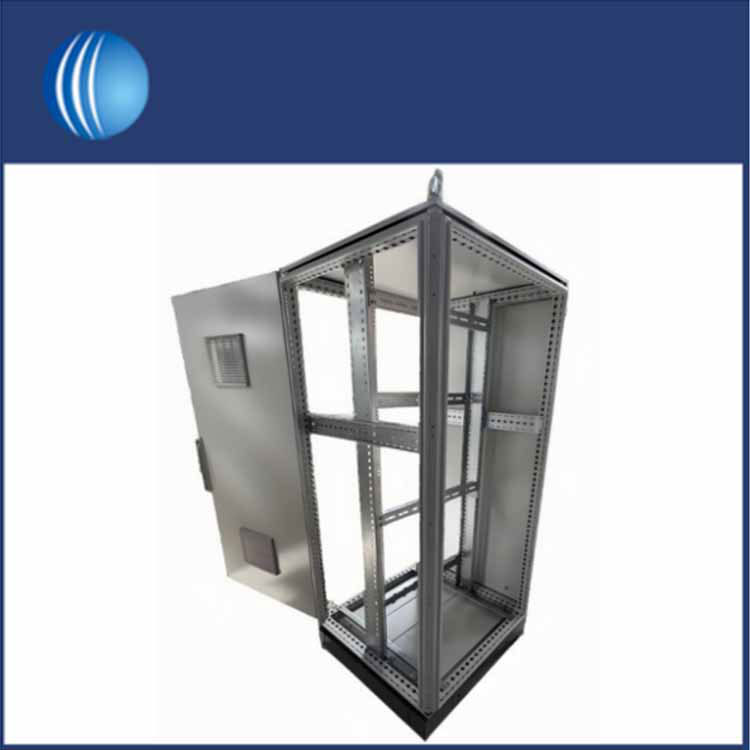

The latest product is the 9 fold profile control cabinet using 9 fold profile, cold rolled steel plate material, cabinet body customized ventilation design.Shuorui® is a control cabinet manufacturer, we have professional equipment and technical team.

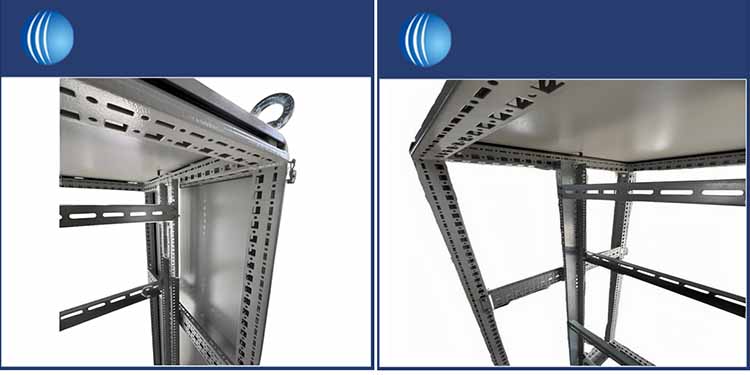

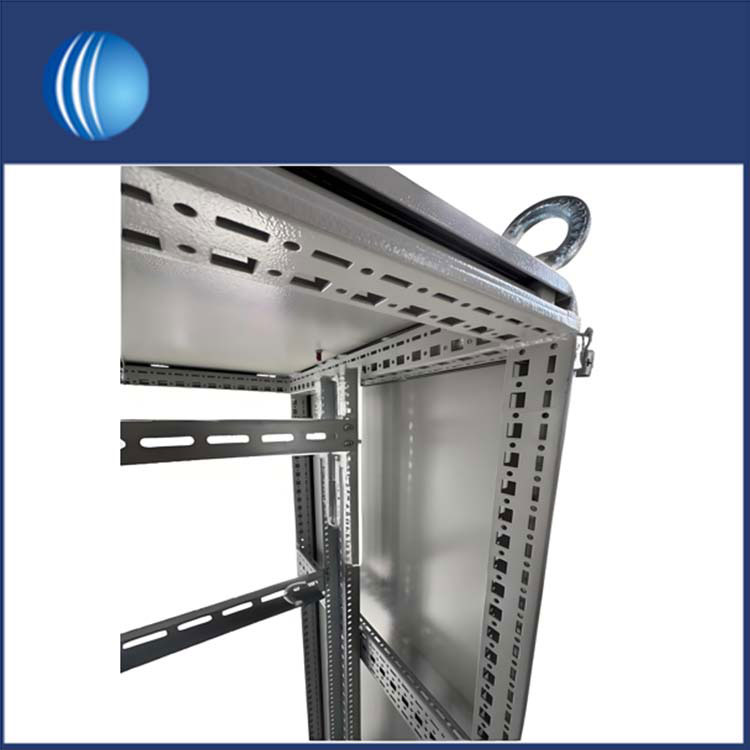

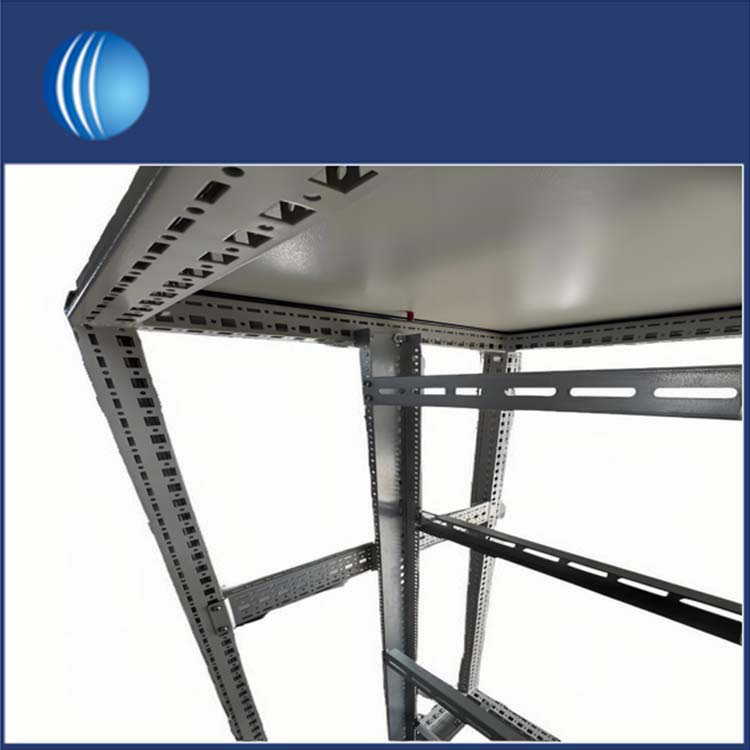

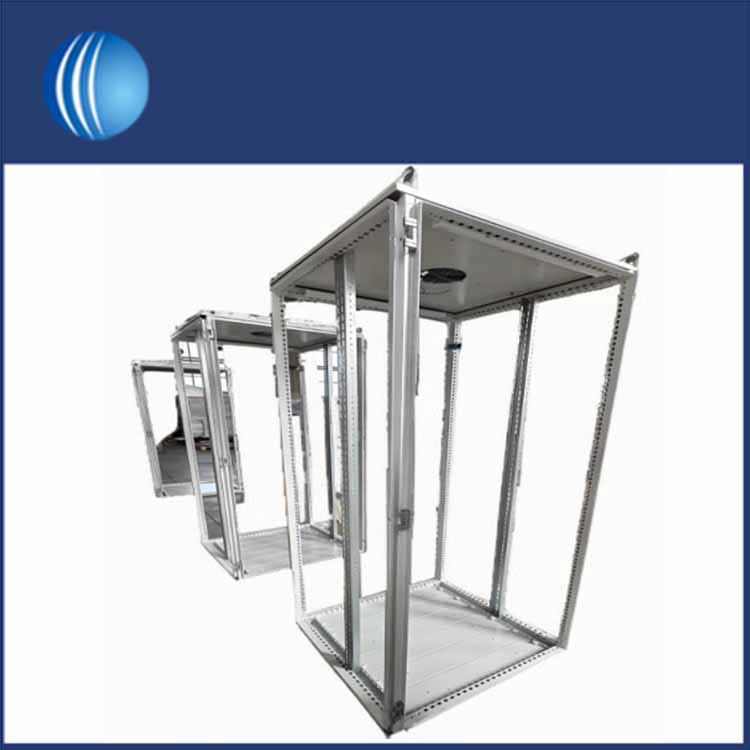

The 9-fold profile of the 9 fold profile control cabinet through the closed column and beam design, taking into account modular assembly and space utilization, and improve the mechanical strength and load-bearing capacity of the cabinet.
The control cabinet is made of cold-rolled steel plate, and the cold-rolled steel has become the mainstream choice for the cabinet of tenfold profile because of its high precision, strength and toughness and low cost advantages.The frame of the 9 fold profile control cabinet made of cold-rolled steel adopts a closed post and beam structure, combined with standardized thickness design such as door plate (2.0mm), mounting plate (2.5mm) and cabinet body (1.5mm), and the load-bearing capacity of a single control cabinet can reach hundreds of kilograms. Its deformation resistance is significantly better than that of traditional structures and is suitable for heavy equipment installation scenarios.
The 9 fold profile control cabinet is made of cold-rolled steel plate is processed into 9 fold profile by rolling forming machine, it is improves the flatness and dimensional accuracy of the structure. During the bending process, special equipment is used to adjust the Angle (usually 90° or acute Angle) and the material stress concentration is avoided by multiple stage bending steps including positioning, Angle adjustment, steady propulsion and fine tuning inspection.

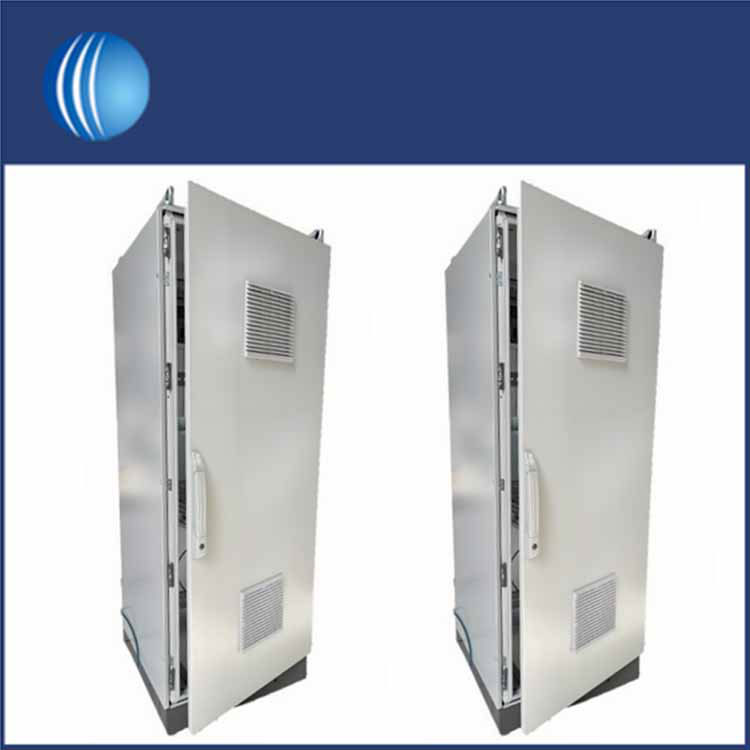

The 9 fold profile control cabinet can be equipped with an overhead fan, heat dissipation hole, or air conditioning system to adapt to high temperature environment.
PS 9 fold profile control cabinet with the high performance and modular design of cold rolled steel, become the core carrier in the field of industrial equipment. The control cabinet technical advantages are not only reflected in the structural strength and processing efficiency, but also reduce the comprehensive cost through standardized production.In the future, the nine fold profile control cabinet will have a wider range of application scenarios.
